CYT Models (Custom micro clutches)

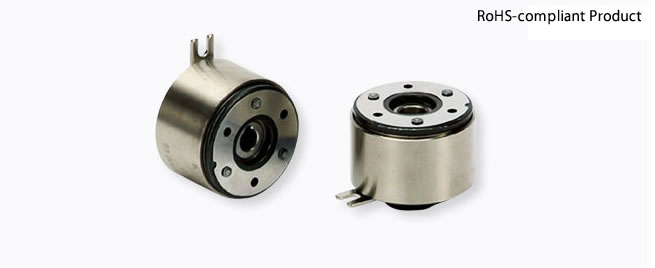

The stators are bearing-mounted types, which can be easily set in place on the shafts.Two types are available for different shaft RPMs: a dry metal type and a ball bearing type. Miki Pulley has experience making a wide array of products customized to customer requirements by assembling three types of armatures with pulleys and gears and then combining these with shafts.

PSL-K Models

[Specifications]

ModelRated torque ［N・m］Rated thrust ［N］Shaft contact pressure ［N/mm2］Hub contact pressure ［N/mm2］Tightening torque ［N・m］Moment of inertia ［kg・m2］Mass ［kg］
PSL-K-65.919501608022.5×10-60.037
PSL-K-6.356.219501508022.5×10-60.036
PSL-K-76.819501308022.5×10-60.035
PSL-K-823590029016045.0×10-60.056
PSL-K-926590026016045.0×10-60.053
PSL-K-9.52528590025013047.8×10-60.069
PSL-K-1029590023013047.7×10-60.068
PSL-K-1132590021013047.6×10-60.065
PSL-K-12477800260160410×10-60.076
PSL-K-12.7507800250140410×10-60.073
PSL-K-14557800220140413×10-60.083
PSL-K-159512700290190824×10-60.125
PSL-K-1610012700270180827×10-60.130
PSL-K-1711012700260170833×10-60.145
PSL-K-1811012700240170832×10-60.140
PSL-K-1912012700230160840×10-60.155
PSL-K-2013012700220160839×10-60.150
PSL-K-2221019000250170865×10-60.210
PSL-K-2423019000230160876×10-60.220
PSL-K-2524019000220160875×10-60.210
PSL-K-283802700022016014203×10-60.390
PSL-K-304002700021015014230×10-60.400
PSL-K-324302700019014014260×10-60.425
PSL-K-356303600021015014366×10-60.525
PSL-K-386803570021016014426×10-60.580
PSL-K-407203600016012014511×10-60.599
PSL-K-427503570017013014561×10-60.657

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.
