Shaft and hub can be easily and quickly coupled by tightening a clamping bolt located on the flange surface.Fastening is accomplished using fewer bolts than with mechanical systems, and there is no slotting as with mechanical systems, so high-precision coupling with a concentricity of 0.05 mm is possible.

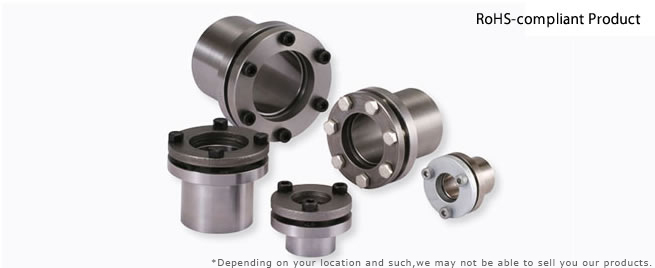

**Many variations**

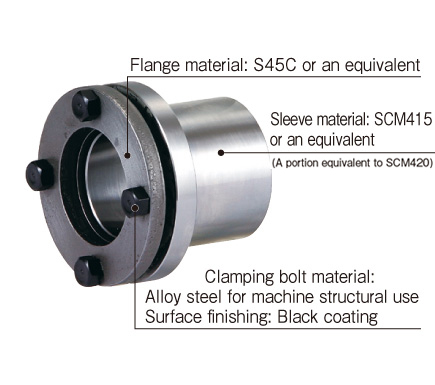

Steel construction is standard, but there are many variations, including simple anti-rust specifications, stainless steel specifications, and short specifications.

### ETP-A Models

**[Specifications]**

Model | Rated torque ［N・m］ | Rated radial load ［N］ | Shaft contact pressure ［N/mm^{2}］ | Hub contact pressure ［N/mm^{2}］ | Tightening torque［N・m］ | Moment of inertia ［kg・m^{2}］ | Mass ［kg］ |
---|---|---|---|---|---|---|---|

ETP-A-15 | 55 | 2500 | 90 | 80 | 6 | 0.018 × 10^{-3} | 0.1 |

ETP-A-19 | 100 | 5800 | 90 | 80 | 8 | 0.046 × 10^{-3} | 0.17 |

ETP-A-20 | 125 | 6600 | 90 | 80 | 8 | 0.046 × 10^{-3} | 0.16 |

ETP-A-22 | 135 | 8200 | 90 | 80 | 8 | 0.065 × 10^{-3} | 0.19 |

ETP-A-24 | 200 | 9800 | 90 | 80 | 8 | 0.067 × 10^{-3} | 0.2 |

ETP-A-25 | 250 | 10600 | 90 | 80 | 8 | 0.071 × 10^{-3} | 0.19 |

ETP-A-28 | 300 | 13100 | 90 | 80 | 8 | 0.12 × 10^{-3} | 0.26 |

ETP-A-30 | 420 | 14700 | 90 | 80 | 8 | 0.14 × 10^{-3} | 0.29 |

ETP-A-32 | 420 | 16300 | 90 | 80 | 8 | 0.20 × 10^{-3} | 0.35 |

ETP-A-35 | 650 | 18800 | 90 | 80 | 8 | 0.25 × 10^{-3} | 0.4 |

ETP-A-38 | 750 | 21200 | 90 | 80 | 8 | 0.31 × 10^{-3} | 0.43 |

ETP-A-40 | 940 | 22800 | 90 | 80 | 8 | 0.44 × 10^{-3} | 0.55 |

ETP-A-42 | 940 | 24400 | 90 | 80 | 8 | 0.47 × 10^{-3} | 0.55 |

ETP-A-45 | 1290 | 26900 | 90 | 80 | 13 | 0.69 × 10^{-3} | 0.71 |

ETP-A-48 | 1570 | 29300 | 90 | 80 | 13 | 0.83 × 10^{-3} | 0.78 |

ETP-A-50 | 1900 | 30900 | 90 | 80 | 13 | 1.05 × 10^{-3} | 0.86 |

ETP-A-55 | 2500 | 35000 | 90 | 80 | 13 | 1.43 × 10^{-3} | 1.06 |

ETP-A-60 | 3400 | 39100 | 90 | 80 | 13 | 2.15 × 10^{-3} | 1.37 |

ETP-A-65 | 3500 | 43100 | 90 | 80 | 13 | 3.10 × 10^{-3} | 1.67 |

ETP-A-70 | 5200 | 47200 | 90 | 80 | 32 | 4.08 × 10^{-3} | 2.04 |

ETP-A-75 | 6300 | 51300 | 90 | 80 | 32 | 5.50 × 10^{-3} | 2.42 |

ETP-A-80 | 8800 | 55000 | 90 | 80 | 32 | 8.10 × 10^{-3} | 2.64 |

ETP-A-90 | 11000 | 60000 | 90 | 80 | 32 | 12.2 × 10^{-3} | 3.54 |

ETP-A-100 | 15500 | 62000 | 90 | 80 | 32 | 19.9 × 10^{-3} | 4.8 |

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

*ETP-A-75, 80, 90, and 100 are made to order.

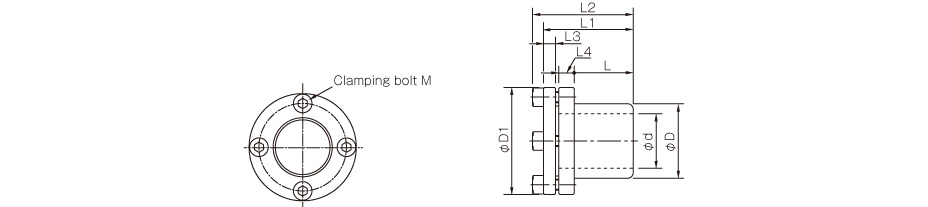

**[Dimensions]**

Model | d | D | D1 | L | L1 | L2 | L3 | L4 | M |
---|---|---|---|---|---|---|---|---|---|

ETP-A-15 | 15 | 23 | 37.5 | 17 | 28 | 33 | 5 | 5.4 | 3-M5×10 |

ETP-A-19 | 19 | 28 | 45 | 21 | 34 | 39 | 5.5 | 6.9 | 3-M5×12 |

ETP-A-20 | 20 | 28 | 45 | 22 | 35 | 40 | 5.5 | 6.4 | 3-M5×12 |

ETP-A-22 | 22 | 32 | 49 | 22 | 35 | 40 | 5.5 | 6.4 | 4-M5×12 |

ETP-A-24 | 24 | 34 | 49 | 25 | 38 | 43 | 5.5 | 6.4 | 4-M5×12 |

ETP-A-25 | 25 | 34 | 49 | 27 | 41 | 46 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-28 | 28 | 39 | 55 | 29 | 43 | 48 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-30 | 30 | 41 | 57 | 32 | 46 | 51 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-32 | 32 | 43 | 60 | 34 | 50 | 55 | 7 | 7.4 | 4-M5×14 |

ETP-A-35 | 35 | 47 | 62.5 | 37 | 53 | 58 | 7 | 7.4 | 6-M5×14 |

ETP-A-38 | 38 | 50 | 65 | 41 | 57 | 62 | 7 | 7.4 | 6-M5×14 |

ETP-A-40 | 40 | 53 | 70 | 43 | 60 | 65 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-42 | 42 | 55 | 70 | 45 | 62 | 67 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-45 | 45 | 59 | 77 | 49 | 66 | 72 | 8 | 8.4 | 6-M6×16 |

ETP-A-48 | 48 | 62 | 80 | 52 | 70 | 76 | 8 | 8.4 | 6-M6×16 |

ETP-A-50 | 50 | 65 | 83 | 53 | 72 | 78 | 8.5 | 9.4 | 6-M6×18 |

ETP-A-55 | 55 | 71 | 88 | 58 | 77 | 83 | 9 | 9.4 | 8-M6×18 |

ETP-A-60 | 60 | 77 | 95 | 64 | 85 | 91 | 10 | 10.4 | 8-M6×20 |

ETP-A-65 | 65 | 84 | 102 | 68 | 90 | 96 | 9.5 | 10.9 | 8-M6×20 |

ETP-A-70 | 70 | 90 | 113 | 72 | 94 | 102 | 9.5 | 10.9 | 6-M8×20 |

ETP-A-75 | 75 | 95 | 118 | 85 | 108 | 116 | 11 | 11 | 6-M8×22 |

ETP-A-80 | 80 | 100 | 123 | 90 | 114 | 122 | 11 | 11 | 6-M8×22 |

ETP-A-90 | 90 | 112 | 135 | 100 | 127 | 135 | 12.5 | 12.5 | 8-M8×25 |

ETP-A-100 | 100 | 125 | 148 | 110 | 139 | 147 | 13.5 | 13 | 8-M8×25 |

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

### ETP-A B Types

**[Specifications]**

Model | Rated torque ［N・m］ | Rated radial load ［N］ | Shaft contact pressure ［N/mm^{2}］ | Hub contact pressure ［N/mm^{2}］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m^{2}］ | Mass ［kg］ |
---|---|---|---|---|---|---|---|

ETP-A-15-B | 55 | 2500 | 90 | 80 | 6 | 0.018 × 10^{-3} | 0.1 |

ETP-A-19-B | 100 | 5800 | 90 | 80 | 8 | 0.046 × 10^{-3} | 0.17 |

ETP-A-20-B | 125 | 6600 | 90 | 80 | 8 | 0.046 × 10^{-3} | 0.16 |

ETP-A-22-B | 135 | 8200 | 90 | 80 | 8 | 0.065 × 10^{-3} | 0.19 |

ETP-A-24-B | 200 | 9800 | 90 | 80 | 8 | 0.067 × 10^{-3} | 0.2 |

ETP-A-25-B | 250 | 10600 | 90 | 80 | 8 | 0.071 × 10^{-3} | 0.19 |

ETP-A-28-B | 300 | 13100 | 90 | 80 | 8 | 0.12 × 10^{-3} | 0.26 |

ETP-A-30-B | 420 | 14700 | 90 | 80 | 8 | 0.14 × 10^{-3} | 0.29 |

ETP-A-32-B | 420 | 16300 | 90 | 80 | 8 | 0.20 × 10^{-3} | 0.35 |

ETP-A-35-B | 650 | 18800 | 90 | 80 | 8 | 0.25 × 10^{-3} | 0.4 |

ETP-A-38-B | 750 | 21200 | 90 | 80 | 8 | 0.31 × 10^{-3} | 0.43 |

ETP-A-40-B | 940 | 22800 | 90 | 80 | 8 | 0.44 × 10^{-3} | 0.55 |

ETP-A-42-B | 940 | 24400 | 90 | 80 | 8 | 0.47 × 10^{-3} | 0.55 |

ETP-A-45-B | 1290 | 26900 | 90 | 80 | 13 | 0.69 × 10^{-3} | 0.71 |

ETP-A-48-B | 1570 | 29300 | 90 | 80 | 13 | 0.83 × 10^{-3} | 0.78 |

ETP-A-50-B | 1900 | 30900 | 90 | 80 | 13 | 1.05 × 10^{-3} | 0.86 |

ETP-A-55-B | 2500 | 35000 | 90 | 80 | 13 | 1.43 × 10^{-3} | 1.06 |

ETP-A-60-B | 3400 | 39100 | 90 | 80 | 13 | 2.15 × 10^{-3} | 1.37 |

ETP-A-65-B | 3500 | 43100 | 90 | 80 | 13 | 3.10 × 10^{-3} | 1.67 |

ETP-A-70-B | 5200 | 47200 | 90 | 80 | 32 | 4.08 × 10^{-3} | 2.04 |

ETP-A-75-B | 6300 | 51300 | 90 | 80 | 32 | 5.50 × 10^{-3} | 2.42 |

ETP-A-80-B | 8800 | 55000 | 90 | 80 | 32 | 8.10 × 10^{-3} | 2.64 |

ETP-A-90-B | 11000 | 60000 | 90 | 80 | 32 | 12.2 × 10^{-3} | 3.54 |

ETP-A-100-B | 15500 | 62000 | 90 | 80 | 32 | 19.9 × 10^{-3} | 4.8 |

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

*ETP-A-75, 80, 90, and 100-B are made to order.

**[Dimensions]**

Model | d | D | D1 | L | L1 | L2 | L3 | L4 | M |
---|---|---|---|---|---|---|---|---|---|

ETP-A-15-B | 15 | 23 | 37.5 | 17 | 28 | 32.5 | 5 | 5.4 | 3-M5×10 |

ETP-A-19-B | 19 | 28 | 45 | 21 | 34 | 38.5 | 5.5 | 6.9 | 3-M5×12 |

ETP-A-20-B | 20 | 28 | 45 | 22 | 35 | 39.5 | 5.5 | 6.4 | 3-M5×12 |

ETP-A-22-B | 22 | 32 | 49 | 22 | 35 | 39.5 | 5.5 | 6.4 | 4-M5×12 |

ETP-A-24-B | 24 | 34 | 49 | 25 | 38 | 42.5 | 5.5 | 6.4 | 4-M5×12 |

ETP-A-25-B | 25 | 34 | 49 | 27 | 41 | 45.5 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-28-B | 28 | 39 | 55 | 29 | 43 | 47.5 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-30-B | 30 | 41 | 57 | 32 | 46 | 50.5 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-32-B | 32 | 43 | 60 | 34 | 50 | 54.5 | 7 | 7.4 | 4-M5×14 |

ETP-A-35-B | 35 | 47 | 62.5 | 37 | 53 | 57.5 | 7 | 7.4 | 6-M5×14 |

ETP-A-38-B | 38 | 50 | 65 | 41 | 57 | 61.5 | 7 | 7.4 | 6-M5×14 |

ETP-A-40-B | 40 | 53 | 70 | 43 | 60 | 64.5 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-42-B | 42 | 55 | 70 | 45 | 62 | 66.5 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-45-B | 45 | 59 | 77 | 49 | 66 | 71 | 8 | 8.4 | 6-M6×16 |

ETP-A-48-B | 48 | 62 | 80 | 52 | 70 | 75 | 8 | 8.4 | 6-M6×16 |

ETP-A-50-B | 50 | 65 | 83 | 53 | 72 | 77 | 8.5 | 9.4 | 6-M6×18 |

ETP-A-55-B | 55 | 71 | 88 | 58 | 77 | 82 | 9 | 9.4 | 8-M6×18 |

ETP-A-60-B | 60 | 77 | 95 | 64 | 85 | 90 | 10 | 10.4 | 8-M6×20 |

ETP-A-65-B | 65 | 84 | 102 | 68 | 90 | 95 | 9.5 | 10.9 | 8-M6×20 |

ETP-A-70-B | 70 | 90 | 113 | 72 | 94 | 99.5 | 9.5 | 10.9 | 6-M8 × 20 |

ETP-A-75-B | 75 | 95 | 118 | 85 | 108 | 113.5 | 11 | 11 | 6-M8 × 22 |

ETP-A-80-B | 80 | 100 | 123 | 90 | 114 | 119.5 | 11 | 11 | 6-M8 × 22 |

ETP-A-90-B | 90 | 112 | 135 | 100 | 127 | 132.5 | 12.5 | 12.5 | 8-M8 × 25 |

ETP-A-100-B | 100 | 125 | 148 | 110 | 139 | 144.5 | 13.5 | 13 | 8-M8 × 25 |

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

### ETP-A C Types

**[Specifications]**

Model | Rated torque ［N・m］ | Rated thrust ［N］ | Shaft contact pressure ［N/mm^{2}］ | Hub contact pressure ［N/mm^{2}］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m^{2}］ | Mass ［kg］ |
---|---|---|---|---|---|---|---|

ETP-A-15-C | 41 | 5000 | 90 | 80 | 6 | 0.018×10^{-3} | 0.10 |

ETP-A-19-C | 75 | 7400 | 90 | 80 | 8 | 0.046×10^{-3} | 0.17 |

ETP-A-20-C | 94 | 8700 | 90 | 80 | 8 | 0.046×10^{-3} | 0.16 |

ETP-A-25-C | 188 | 14000 | 90 | 80 | 8 | 0.071×10^{-3} | 0.19 |

ETP-A-30-C | 315 | 19000 | 90 | 80 | 8 | 0.14×10^{-3} | 0.29 |

ETP-A-35-C | 488 | 26000 | 90 | 80 | 8 | 0.25×10^{-3} | 0.40 |

ETP-A-40-C | 705 | 33000 | 90 | 80 | 8 | 0.44×10^{-3} | 0.55 |

ETP-A-45-C | 968 | 40000 | 90 | 80 | 13 | 0.69×10^{-3} | 0.71 |

ETP-A-50-C | 1426 | 53000 | 90 | 80 | 13 | 1.05×10^{-3} | 0.86 |

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

**[Dimensions]**

Model | d | D | D1 | L | L1 | L2 | L3 | L4 | M |
---|---|---|---|---|---|---|---|---|---|

ETP-A-15-C | 15 | 23 | 37.5 | 17 | 28 | 33 | 5 | 5.4 | 3-M5×10 |

ETP-A-19-C | 19 | 28 | 45 | 21 | 34 | 39 | 5.5 | 6.9 | 3-M5×12 |

ETP-A-20-C | 20 | 28 | 45 | 22 | 35 | 40 | 5.5 | 6.4 | 3-M5×12 |

ETP-A-25-C | 25 | 34 | 49 | 27 | 41 | 46 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-30-C | 30 | 41 | 57 | 32 | 46 | 51 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-35-C | 35 | 47 | 62.5 | 37 | 53 | 58 | 7 | 7.4 | 6-M5×14 |

ETP-A-40-C | 40 | 53 | 70 | 43 | 60 | 65 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-45-C | 45 | 59 | 77 | 49 | 66 | 72 | 8 | 8.4 | 6-M6×16 |

ETP-A-50-C | 50 | 65 | 83 | 53 | 72 | 78 | 8.5 | 9.4 | 6-M6×18 |

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

### ETP-A S Types

**[Specifications]**

Model | Rated torque ［N・m］ | Rated thrust ［N］ | Shaft contact pressure ［N/mm^{2}］ | Hub contact pressure ［N/mm^{2}］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m^{2}］ | Mass ［kg］ |
---|---|---|---|---|---|---|---|

ETP-A-19-S | 53 | 5000 | 90 | 80 | 8 | 0.044×10^{-3} | 0.15 |

ETP-A-20-S | 75 | 6000 | 90 | 80 | 8 | 0.042×10^{-3} | 0.14 |

ETP-A-25-S | 120 | 10000 | 90 | 80 | 8 | 0.065×10^{-3} | 0.17 |

ETP-A-30-S | 210 | 14000 | 90 | 80 | 8 | 0.12×10^{-3} | 0.24 |

ETP-A-35-S | 330 | 19000 | 90 | 80 | 8 | 0.22×10^{-3} | 0.32 |

ETP-A-40-S | 500 | 26000 | 90 | 80 | 8 | 0.37×10^{-3} | 0.46 |

ETP-A-45-S | 700 | 31000 | 90 | 80 | 13 | 0.56×10^{-3} | 0.57 |

ETP-A-50-S | 1000 | 40000 | 90 | 80 | 13 | 0.85×10^{-3} | 0.72 |

Model | d | D | D1 | L | L1 | L2 | L3 | L4 | M |
---|---|---|---|---|---|---|---|---|---|

ETP-A-19-S | 19 | 28 | 45 | 13 | 26 | 31 | 5.5 | 6.9 | 3-M5×12 |

ETP-A-20-S | 20 | 28 | 45 | 15 | 28 | 33 | 5.5 | 6.4 | 3-M5×12 |

ETP-A-25-S | 25 | 34 | 49 | 15 | 29 | 34 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-30-S | 30 | 41 | 57 | 20 | 34 | 39 | 5.5 | 6.9 | 4-M5×12 |

ETP-A-35-S | 35 | 47 | 62.5 | 22 | 38 | 43 | 7 | 7.4 | 6-M5×14 |

ETP-A-40-S | 40 | 53 | 70 | 25 | 42 | 47 | 7.5 | 8.4 | 6-M5×16 |

ETP-A-45-S | 45 | 59 | 77 | 28 | 45 | 51 | 8 | 8.4 | 6-M6×16 |

ETP-A-50-S | 50 | 65 | 83 | 26 | 45 | 51 | 8.5 | 9.4 | 6-M6×18 |

### ETP-A R Types

**[Specifications]**

Model | Rated torque ［N・m］ | Rated radial load ［N］ | Shaft contact pressure ［N/mm^{2}］ | Hub contact pressure ［N/mm^{2}］ | Tightening torque ［N・m］ | Moment of inertia ［kg・m^{2}］ | Mass ［kg］ |
---|---|---|---|---|---|---|---|

ETP-A-15-R | 45 | 2500 | 90 | 70 | 4.5 | 0.018 × 10^{-3} | 0.1 |

ETP-A-20-R | 100 | 6600 | 90 | 70 | 4.5 | 0.046 × 10^{-3} | 0.16 |

ETP-A-25-R | 210 | 10600 | 90 | 70 | 4.5 | 0.071 × 10^{-3} | 0.19 |

ETP-A-30-R | 350 | 14700 | 90 | 70 | 4.5 | 0.142 × 10^{-3} | 0.29 |

ETP-A-35-R | 500 | 18800 | 90 | 70 | 4.5 | 0.250 × 10^{-3} | 0.4 |

ETP-A-40-R | 750 | 22800 | 90 | 70 | 4.5 | 0.441 × 10^{-3} | 0.55 |

ETP-A-45-R | 1100 | 26900 | 90 | 70 | 7.8 | 0.686 × 10^{-3} | 0.71 |

ETP-A-50-R | 1550 | 30900 | 90 | 70 | 7.8 | 1.045 × 10^{-3} | 0.86 |

**[Dimensions]**

Model | d | D | D1 | L | L1 | L2 | L3 | L4 | M |
---|---|---|---|---|---|---|---|---|---|

ETP-A-15-R | 15 | 23 | 37.5 | 17 | 28 | 32 | 5 | 5.4 | 4-M5×10 |

ETP-A-20-R | 20 | 28 | 45 | 22 | 36 | 40 | 5.5 | 6.4 | 5-M5×12 |

ETP-A-25-R | 25 | 34 | 49 | 27 | 41 | 45 | 5.5 | 6.9 | 7-M5×12 |

ETP-A-30-R | 30 | 41 | 57 | 32 | 46 | 50 | 5.3 | 6.9 | 7-M5×12 |

ETP-A-35-R | 35 | 47 | 62.5 | 37 | 53 | 57 | 7 | 7.4 | 9-M5×14 |

ETP-A-40-R | 40 | 53 | 70 | 43 | 60 | 64 | 8 | 8.4 | 9-M5×16 |

ETP-A-45-R | 45 | 59 | 77 | 49 | 66 | 70 | 8 | 8.4 | 9-M6×16 |

ETP-A-50-R | 50 | 65 | 83 | 53 | 72 | 76 | 8.5 | 9.4 | 9-M6×18 |
