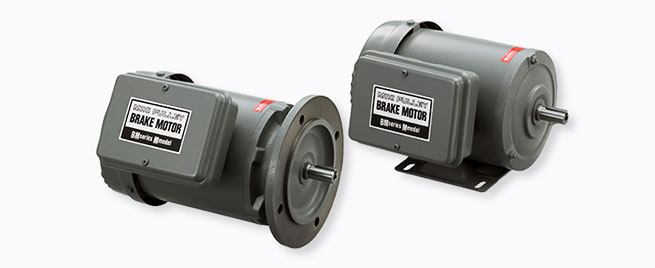

These incorporate internal electromagnetic-actuated brakes and compact power supplies without changing the dimensions of the general-purpose motor.As electromagnetic-actuated brakes, these models brake motor shafts when current runs through the brake coil. Shutoff of the current to the brake coil instantly releases the brake. Brake torque is transmitted using a constant-load disc spring, so braking is always reliable.
BMM Models
[Specifications]
| Model | Motor | Brake | Rotating part moment of inertia [kg･m2] | Allowable braking energy rate Pbaℓ [W] | Total braking energy ET [J] | Operating time | Mass ［kg］ | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame | Output [kW] 4P | Torque T [N･m] | Coil(at20℃) | Heat resistance class | Gap | Armature pull-in time ta [s] | armature release time tar[s] | |||||||||
| Voltage [V] | Current [A] | Resistance [Ω] | Wattage [W] | Specified value [mm] | Limit value [mm] | |||||||||||
| BMM-024-NHBN | 63 | 0.2 | 2.5 | DC180 | 0.06 | 2956 | 11 | B | 0.10～0.20 | 0.30 | 0.9×10-3 | 11 | 5.0×107 | 0.015 | 0.015 | 7 |
| BMM-024-NHFN | 63 | 0.2 | 2.5 | DC180 | 0.06 | 2956 | 11 | B | 0.10～0.20 | 0.30 | 0.9×10-3 | 11 | 5.0×107 | 0.015 | 0.015 | 8 |
| BMM-044-NHB | 71 | 0.4 | 5 | DC180 | 0.07 | 2458 | 12.6 | B | 0.10～0.20 | 0.35 | 2.4×10-3 | 26.2 | 7.0×107 | 0.030 | 0.030 | 9 |
| BMM-044-NHF | 71 | 0.4 | 5 | DC180 | 0.07 | 2458 | 12.6 | B | 0.10～0.20 | 0.35 | 2.4×10-3 | 26.2 | 7.0×107 | 0.030 | 0.030 | 10 |
| BMM-074-HPB | 80 | 0.75 | 10 | DC180 | 0.089 | 2039 | 16 | B | 0.15～0.25 | 0.45 | 3.8×10-3 | 32.7 | 17.0×107 | 0.040 | 0.040 | 14.5 |
| BMM-074-HPF | 80 | 0.75 | 10 | DC180 | 0.089 | 2039 | 16 | B | 0.15～0.25 | 0.45 | 3.8×10-3 | 32.7 | 17.0×107 | 0.040 | 0.040 | 16.5 |
| BMM-154-HPB | 90 | 1.5 | 20 | DC180 | 0.123 | 1466 | 22.1 | B | 0.15～0.25 | 0.70 | 9.5×10-3 | 45.8 | 25.0×107 | 0.060 | 0.060 | 22 |
| BMM-154-HPF | 90 | 1.5 | 20 | DC180 | 0.123 | 1466 | 22.1 | B | 0.15～0.25 | 0.70 | 9.5×10-3 | 45.8 | 25.0×107 | 0.060 | 0.060 | 25 |
| BMM-224-HPB | 100 | 2.2 | 30 | DC180 | 0.167 | 1080 | 30 | B | 0.20～0.30 | 1.00 | 15.2×10-3 | 58.9 | 50.0×107 | 0.070 | 0.070 | 32 |
| BMM-224-HPF | 100 | 2.2 | 30 | DC180 | 0.167 | 1080 | 30 | B | 0.20～0.30 | 1.00 | 15.2×10-3 | 58.9 | 50.0×107 | 0.070 | 0.070 | 37 |
| BMM-374-HPB | 112 | 3.7 | 50 | DC180 | 0.17 | 1059 | 30.6 | B | 0.20～0.30 | 1.10 | 22.6×10-3 | 73.6 | 75.0×107 | 0.070 | 0.080 | 42 |
| BMM-374-HPF | 112 | 3.7 | 50 | DC180 | 0.17 | 1059 | 30.6 | B | 0.20～0.30 | 1.10 | 22.6×10-3 | 73.6 | 75.0×107 | 0.070 | 0.080 | 47 |
※Totally enclosed fan cooled motors in conformance with JIS C 4210 for 0.2kW･0.4kW motors, and JIS C 4213 for motors over 0.75 kW.（made by Hitachi Industrial Equipment Systems）
※Motor input power sources are three phase, AC 200V/50Hz、AC200V・AC220V/60Hz.
※For the brake motor's braking frequency tolerance, please refer to the design's points for confirmation pages. More detailed frequency data depends on load conditions, so please confirm through selective calculation.
[Dimensions]
| Model | Dimensions of part | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | R | A | B | D | KL | H | C | F | E | N | M | G | Z | S | W | U | T | Q | V | |
| BMM-024-NHBN | 215 | 103 | 112 | 80 | 130 | 115 | 128 | 63 | 40 | 50 | 100 | 130 | 3.2 | 7×21 | 11 h6 | － | 1 | － | 23 | － |
| BMM-044-NHB | 235.5 | 120 | 115.5 | 87 | 145 | 131 | 143.5 | 71 | 45 | 56 | 115 | 140 | 3.2 | 7×20 | 14 j6 | 5 | 3 | 5 | 30 | M5×0.8length18 |
| BMM-074-HPB | 280.5 | 140 | 140.5 | 97 | 163 | 138.5 | 161.5 | 80 | 50 | 62.5 | 125 | 160 | 3.2 | 10×25 | 19 j6 | 6 | 3.5 | 6 | 40 | M6×1length20 |
| BMM-154-HPB | 321 | 168.5 | 152.5 | 114.5 | 182 | 144 | 178 | 90 | 62.5 | 70 | 155 | 170 | 10 | 10 | 24 j6 | 8 | 4 | 7 | 50 | M6×1length20 |
| BMM-224-HPB | 368.5 | 193 | 175.5 | 129 | 198 | 151 | 197.5 | 100 | 70 | 80 | 175 | 195 | 12.5 | 12 | 28 j6 | 8 | 4 | 7 | 60 | M6×1length20 |
| BMM-374-HPB | 397 | 200 | 197 | 136 | 225 | 164 | 219.5 | 112 | 70 | 95 | 175 | 224 | 14 | 12 | 28 j6 | 8 | 4 | 7 | 60 | M6×1length20 |
[Dimensions2]
| Model | Dimensions of part | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | LR | LL | D | KL | LC | LB | LA | LE | LG | LZ | S | W | U | T | Q | V | |
| BMM-024-NHFN | 241 | 23 | 218 | 130 | 115 | 160 | 110 | 130 | 3.5 | 8 | 10 | 11h6 | － | 1 | － | 23 | － |
| BMM-044-NHF | 256.5 | 30 | 226.5 | 145 | 124.5 | 160 | 110 | 130 | 3.5 | 10 | 10 | 14 j6 | 5 | 3 | 5 | 30 | M5×0.8length18 |
| BMM-074-HPF | 295 | 40 | 255 | 163 | 132 | 200 | 130 | 165 | 3.5 | 12 | 12 | 19 j6 | 6 | 3.5 | 6 | 40 | M6×1length20 |
| BMM-154-HPF | 341 | 50 | 291 | 176 | 144 | 200 | 130 | 165 | 3.5 | 12 | 12 | 24 j6 | 8 | 4 | 7 | 50 | M6×1length20 |
| BMM-224-HPF | 388.5 | 60 | 328.5 | 195 | 151 | 250 | 180 | 215 | 4.0 | 16 | 14.5 | 28 j6 | 8 | 4 | 7 | 60 | M6×1length20 |
| BMM-374-HPF | 422 | 60 | 362 | 215 | 164 | 250 | 180 | 215 | 4.0 | 16 | 14.5 | 28 j6 | 8 | 4 | 7 | 60 | M6×1length20 |
