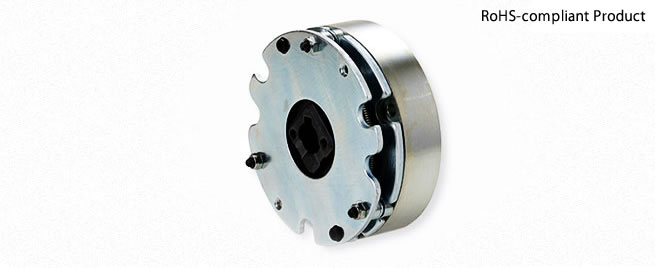

BXH Models

Specifications

Available Options

Downloads

[Specifications]

Model	Size	Static friction torque Ts ［N・m］	Coil (at 20℃)				Heat resistance class	Lead wire		Max. rotation speed ［min^-1］	Rotating part moment of inertia J ［kg・m²］	Allowable braking energy rate Ebaℓ ［J］	Total braking energy ET ［J］	Armature pull-in time ta ［s］	Armature release time tar ［s］	Mass ［kg］
Model	Size	Static friction torque Ts ［N・m］	Voltage ［V］	Wattage［W］	Current ［A］	Resistance ［Ω］	Heat resistance class	UL style	Size	Max. rotation speed ［min^-1］	Rotating part moment of inertia J ［kg・m²］	Allowable braking energy rate Ebaℓ ［J］	Total braking energy ET ［J］	Armature pull-in time ta ［s］	Armature release time tar ［s］	Mass ［kg］
BXH-06-10	06	4	DC24	15	0.63	38.4	F	UL3398	AWG22	5000	3.25×10^-5	700	2.0×10⁶	0.040	0.020	0.9
			DC45	12	0.27	169
			DC90	12	0.13	677
BXH-08-10	08	8	DC24	22.5	0.94	25.6	F	UL3398	AWG18	5000	5.75×10^-5	1100	3.5×10⁶	0.045	0.020	1.3
			DC45	19	0.41	110
			DC90	19	0.21	440
BXH-10-10	10	16	DC24	28	1.14	21.1	F	UL3398	AWG18	4000	1.30×10^-4	1300	6.2×10⁶	0.070	0.025	2.3
			DC45	25	0.54	83
			DC90	25	0.27	331
BXH-12-10	12	32	DC24	35	1.46	16.5	F	UL3398	AWG18	3600	3.20×10^-4	1600	9.0×10⁶	0.090	0.025	3.4
BXH-12-10	12	32	DC90	30	0.33	271	F	UL3398	AWG18	3600	3.20×10^-4	1600	9.0×10⁶	0.090	0.025	3.4
BXH-16-10	16	44	DC24	39	1.64	14.6	F	UL3398	AWG18	3000	6.93×10^-4	2200	11.4×10⁶	0.125	0.030	5.4
BXH-16-10	16	44	DC90	39	0.43	207	F	UL3398	AWG18	3000	6.93×10^-4	2200	11.4×10⁶	0.125	0.030	5.4

*The armature pull-in time and armature release time are taken during DC switching.

*See the operating characteristics page for the armature pull-in time and release time during AC-side switching (half-wave rectified).

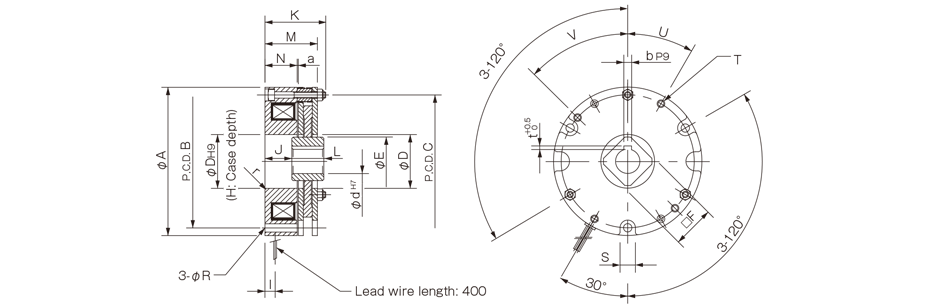

[Dimensions]

Size	A	B	C	D	r	E	F	H	I	J	K	L	M	N	R	S	T	U	V	a	d	b	t
06	83	73	73	28	R1	26.5	22	3	10	20.5	39.5	14	33.6	20	4.5	9	2－M5	30゜	-	0.15	11	4	1.5
08	96	86	86	35	R1	32	25	3	12	20	41	17	35	20.8	5.5	10.5	2－M5	30゜	-	0.15	14	5	2
10	116	104	104	42	R1	38	30	3	9.5	21	47.5	25	41	25.3	6.5	12.5	2－M6	30゜	-	0.2	19	6	2.5
12	138	124	124	50	R1	45	35	4	12	19	49.8	30	43.5	23.3	6.5	12.5	4－M6	30゜	45゜	0.2	24	8	3
16	158	142	143	59	R1	55	45	4	14	22.5	57.5	35	51	27.7	9	15.5	4－M8	40゜	40゜	0.25	28	8	3

Release Levers *Made to Order

Option no.: 12
In addition to the manual release tap of the standard product, we also offer an optional manual release lever. See the dimensions table below for the dimensions of brakes with release levers.
Please contact Miki Pulley for other specification values.

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	Y	U	V	S	a	d	b	t
BXH-06-12	83	73	73	28	26.5	22	42.8	3	10	20.5	49.5	14	33.7	20	2.9	105	24	4.5	81	73	20	9	0.15	11	4	1.5
BXH-08-12	96	86	86	35	32	25	45.4	3	12	20	56	17	35.3	20.8	4	122	27	5.5	95	85	20	10.5	0.2	14	5	2
BXH-10-12	116	104	104	42	38	30	53.9	3	9.5	21	63	25	42.2	25.3	4.5	162.5	32.5	6.5	130	103	28	12.5	0.25	19	6	2.5
BXH-12-12	138	124	124	50	45	35	58.3	4	12	19	70	30	45.4	23.3	5	200	40	6.5	160	121	36	12.5	0.25	24	8	3
BXH-16-12	158	142	143	59	55	45	66.5	4	14	22.5	72.5	35	53.3	27.7	6	230	44	9	186	140	36	15.5	0.25	28	8	3

Quiet Mechanism (Silencing Spring)*Made to Order

Option no.: S1
There is a extremely small structural backlash (see figure on the below) between the rotor and the rotor hub. In applications that are prone to microvibrations of the drive shaft such as single-phase motors, this backlash may produce rattling (banging). The silencing spring for the rotor hub reduces this rattling.

List of Option Numbers *Made to Order

Description of options	No quiet mechanism	With silencing spring
No release lever	10	10S1
Has release lever	12	12S1

*Option 10 uses standard specifications.
