Rigorous analysis using finite element method, metal disc-spring method for ultra-high torsional stiffness

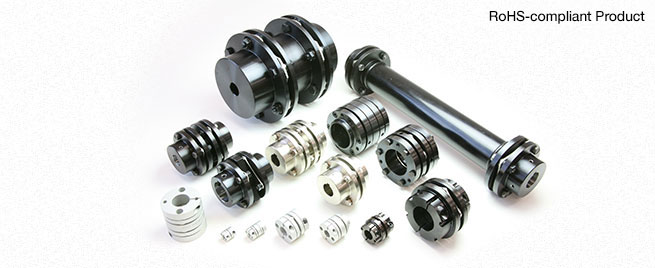

These metal disc-spring couplings with ultra-high torsional stiffness were developed for servo motor applications. The disc-spring method provides excellent properties: firmness in the torsional direction but flexibility in the bending, step-difference, and axial directions. The disc spring that serves as the element has an unbeatable theoretically derived shape that is the result of rigorous analysis with the latest finite element method. These couplings are available in a full line-up for many different applications. Compact and lightweight SFC models use high-strength aluminum alloy for the hub material. SFS models, which use carbon steel for the body material, come in many different variations. And the SFM and SFF models were developed for main and feed shafts of machine tools.
Applications :
Machine tools/Semiconductor production equipment/Actuators/Chip mounters/Printing machines/Packaging machinery
Printing Presses
Product Models Used : SFC + ETPETP bushings are used to secure the feed roll in place. The roll and shaft can be secured in place easily and accurately, allowing the length along the direction of the shaft to be reduced.
![]() [Overall view of equipment used] |
![]() [Enlarged view] |
Medical Equipment
Product Models Used : BXW + SFCSFC model metal disc couplings and BXW model spring-actuated brakes with sound-absorbing springs are used to transmit power and maintain positions in diagnostic imaging systems. They contribute to improving quietness.
![]() [Overall view of equipment used] |
![]() [Enlarged view] |
SFC Models End-face Tap Specifications![]() Bores can be drilled into the tap on the end face of the hub to use for attaching a slit plate or other part for the position detection sensor |
SFC Models Slit Plate Specifications![]() These specifications can be used for position detection sensors such as encoders and photo sensors with attachment of a slit plate between hubs. |
SFC Models Long Spacer Specifications![]() These specifications are used for applications with wider distances between mounting shafts. They can also be used in synchronization of gantry mechanisms and other applications. |
SFC Models Assembly Specifications![]() These models are special made-to-order parts assembled using an SFC model, a POSI-LOCK (shaft-lock) PSL-K model, a timing pulley, and a shaft. |
Q : What are the durability and aging deterioration of the SERVOFLEX?

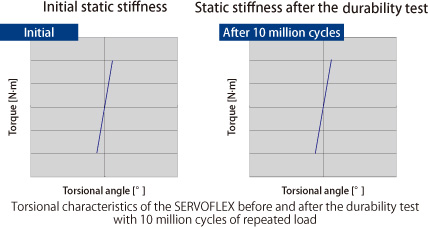

A : We conduct a torsional durability test by applying a load larger than the rated torque. SERVOFLEX passed the test by withstanding the metal fatigue limit of 10 million cycles of repeated load. SErvoflex is all made of metal materials so the deterioration is extremely slow, and it is able to transmit torque with high precision for a long period of time.
Q : When a coupling is mounted, the driven shaft runs out. What is the cause?
A : The runout of a driven shaft caused by a coupling is mainly attributed to the counterforce of the shaft caused by insufficient centering. All of the SERVOFLEX series are assembled using high-precision special jigs to ensure high concentricity of the bores on the left and right. The counterforce of the shaft is extremely small so the runout of the driven shaft can be minimized.
Q : Noise and vibrations occurred during use of a metal disc coupling. Please tell me how to prevent them.
A : For a servo motor, noise and vibrations can be suppressed by setting the machine resonance suppression filter to its natural frequency in the control system. For a stepper motor, vibrations can be absorbed and suppressed by changing the rotation speed or using a STEPFLEX coupling with high damping ability.
Q : Can enough torque be transmitted using the clamping method for connection to the shaft?
A : Our torque transmission test uses a sufficient safety factor, so slip of the connection caused by the connection method will not occur when using the rated torque in the catalog. A keyway can be milled into the clamping hub. If you are interested, please refer to P.041 Keyway Milling Option.
