It can be very difficult to fully center two shafts when connecting them together. Shaft deflection caused in operation of the machinery, thermal expansion of the shafts, warping of support plates over long periods of use, and wear of shaft bearings can also make it difficult to keep the shafts centered. The role of the coupling is to resolve these types of problems through the selection of the right coupling for the job. Miki Pulley provides a wide range of coupling products not just for general purpose motors, but for everything from servo motors, which demand ultra-precise control, to engines, which generate high vibration and large shocks.

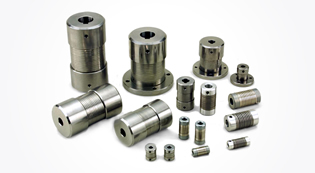

List of Miki Pulley Couplings
These metal disc-spring couplings with ultra-high torsional stiffness were developed for servo motor applications. The disc-spring method provides excellent properties: firmness in the torsional direction but flexibility in the bending, step-difference, and axial directions. The disc spring that serves as the element has an unbeatable theoretically derived shape that is the result of rigorous analysis with the latest finite element method.
Newly developed rubber element achieves high damping performance. A coupling with high damping performance that can be used for high-speed, high-precision operation of servo motors, etc. No backlash due to frictional power transmission. By adopting HNBR for the element, vibration is quickly damped compared with flexible couplings that use metal elements. This suppresses the resonance phenomenon a concern in the drive system and provides stable high-speed control that can avoid resonance in a wide range of operating speeds.
These couplings have a simpler design that sandwiches a rubber buffer (nitrile rubber) between two hubs. The hub is lightweight, being made of aluminum alloy. Mounting on a shaft is easy. Simply hold a straight-edge to the hub periphery to center it. One source of appeal is that its simple construction means lower cost.
The simple construction of these couplings sandwiches a buffer piece called an element (made of polyurethane elastomer) between two hubs. Elements of two different hardnesses are available so you can select the appropriate one for your torque transmission responsiveness and amount of misalignment. Since the design pre-compresses the element, it can also be used without backlash.
These are rigid couplings with ultra-high torsional stiffness that were developed for servo motor applications. Unlike flexible couplings, they have no element to absorb differences between the centers of the two shafts, so they have very high torsional stiffness.
These couplings connect a hub that mounts on the shaft to another hub, separated by a metal coil. They achieve excellent flexibility, compact size, and high torque. Different models may connect either a shaft to another shaft or a shaft to a flange.
These are pin-bushing type couplings whose bodies are made of aluminum alloy. Backlash is kept extremely low by making the torsional stiffness of all components very high and combining high-precision pins with dry metal. A universal system is used for all hub coupling, which makes shaft reaction force due to mounting misalignment extremely small. There is also a damping effect from sliding at the friction surface between the pin and dry metal.
When transmitting power between shafts with different centers, which have traditionally been constituted of a spline shaft and a universal joint, Schmidt couplings can be used to efficiently transmit power in a compact form factor. Schmidt couplings are couplings with different shaft centers that use the crank motion of a link. They not only allow power transmission when shaft centers are different, they also enable translation of shaft centers while rotating.
These couplings absorb vibration and have extremely low counter force caused by mounting misalignment, thanks to the use of a plastic boot made of resin with excellent elastic properties (polyester resins). They are compact and lightweight, since the aluminum alloy hub and boot are designed with a unitized construction. Thanks to the unitized construction, they are easy to mount and remove, and there is no backlash. They come in three sizes, and all are highly flexible couplings that allow eccentricity of 0.5 mm and an angle of deflection of 10°.
Rubber couplings dampen and absorb shock and vibrations using the elasticity of rubber, while plastic couplings do the same with plastics. Their advantages include high flexibility, low noise, easy maintenance (because they do not require lubrication), simple construction, and long service life.
It is a non-contact type coupling that utilizes attraction and repulsion of the magnet and has no contact portion for power transmission, so there is no wear and dust generation of the parts, no noise, vibration and so on.The tolerance of eccentricity and declination in mounting is large, and attachment/detachment can be done very easily.Similar to the general coupling, it can be used as butting axis, as well as other types like parallel axis and orthogonal axis and etc.In addition, since power is transmitted by magnetic force, it can be used as bulkhead transmission and torque limiter function in case of overload.
